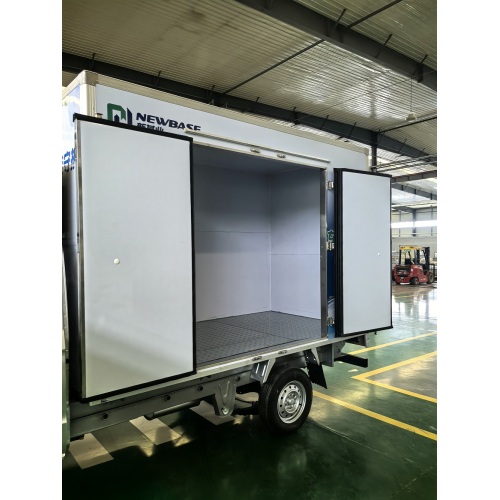

Compact electric refrigerated truck for EU urban delivery

Payment Type:

T/T

Incoterm:

FOB,CFR,CIF,EXW,FCA

Min. Order:

1

Transportation:

Land,Ocean,Air

Port:

ningbo,shanghai,guangzhou

Model No.:

NBESRA300 - 000

Brand:

Newbase

species:

Van

fuel:

Electric

Origin:

China

Applicable Compartment Volume:

7 - 10m³

Minimum Compartment Temperature:

-20℃

Refrigerating Capacity:

3200W at 0℃/30℃ 1850W at -20℃/30℃

High Voltage:

DC250V - DC450V (Low Voltage Platform) DC380V - DC750V (High Voltage Platform)

Power:

2500W at 0℃/+30℃ 1300W at -20℃/+30℃

Driving Mode:

Pure Electric

Control Voltage:

DC12V (9 ~ 16V) DC24V (16 ~ 32V)

Low - Voltage Power Supply:

DC - DC Self - supply / or Connect to the Whole Vehicle

Standby Power Supply:

AC220V/380V (Optional)

Compressor:

Guangzhou Guangyu GY27.E72 - 601C (Inverter)

Refrigerant:

R404A

Refrigerant Charge:

1.2kg

Defrosting Method:

Automatic Hot Gas Defrosting

Heating Method:

Hot Gas Heating / PTC (Optional)

Control Method:

CAN Communication

Condenser Assembly:

Dimensions (L*W*H) (mm): 740*730*468,Weight (kg): 75

Condenser Fan:

Quantity (pc): 1,Total Air Volume (m³/h): 1800

Evaporator Assembly:

Dimensions (L*W*H) (mm): 1038*570*140,Weight (kg): 22

Evaporator Fan:

Quantity (pc): 2,Total Air Volume (m³/h): 2000
